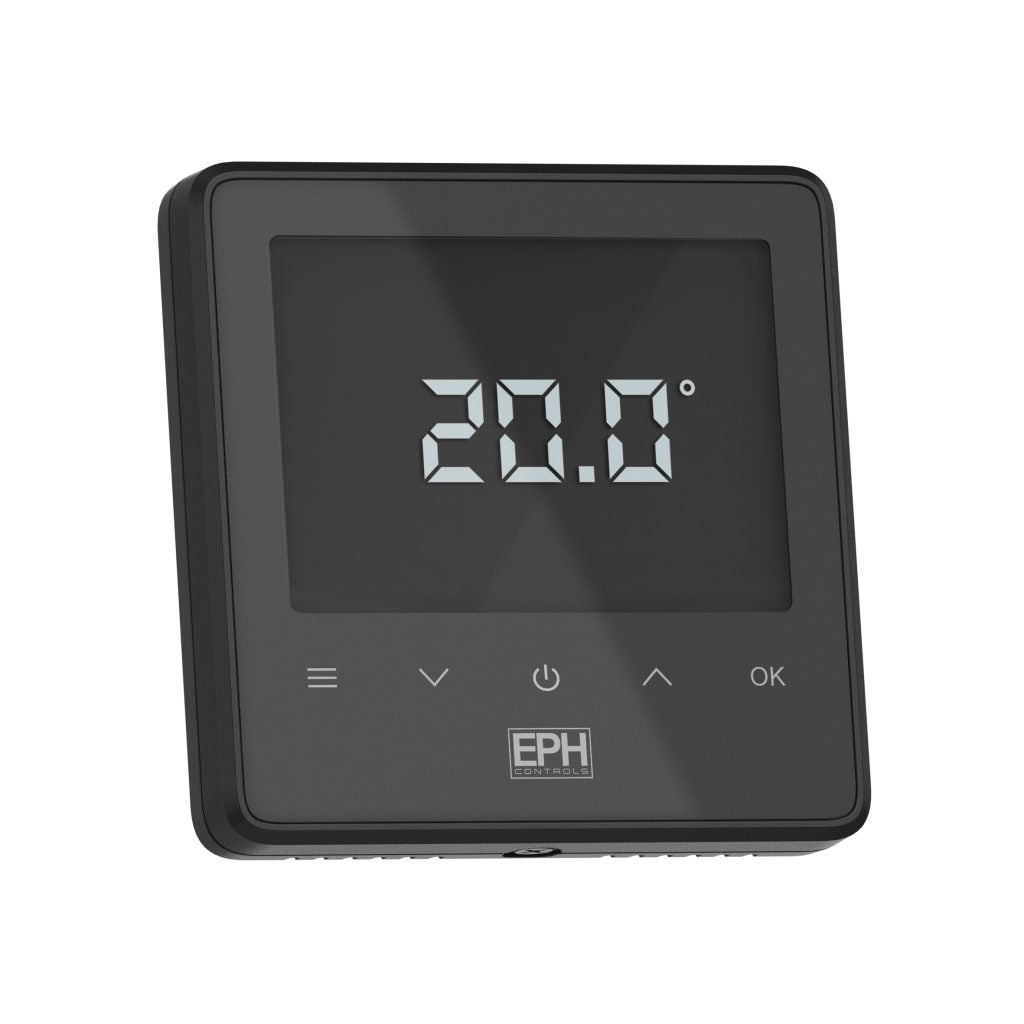

EPH - RF Touch Thermostat, Recessed, Mains Operated, Black

Product Part Number

EPH-RDT-RF-TB

Product Overview

The RDT-RF-TB Mains Powered Recessed RF Touch Thermostat delivers intuitive touch control combined with reliable RF communication, providing a modern and efficient heating control solution. Designed for recessed installation, it integrates seamlessly with EPH Programmer Systems (PS) and Underfloor Systems (US).

Engineered for simplicity and ease of use, the thermostat features a sleek touch interface with a dedicated On/Off button and advanced control functions including Delay Start and TPI (Time Proportional & Integral) for improved comfort and energy efficiency.

With an RF communication range of up to 30 metres, the RDT-RF-TB is compatible with the UFH10-RF wiring centre and R_7-RFv2 receiver. When paired with the GW04 gateway, users can remotely manage their heating system via the EMBER App, offering convenient smartphone control.

Technical Specification

• Product Name: RDT-RF-TB – Mains Powered Recessed RF Touch Thermostat
• Mounting Type: Recessed
• Application: Compatible with EPH Programmer Systems (PS) and Underfloor Systems (US)
• Control Features:
  • Touch interface
  • On / Off button
  • Delay Start
  • TPI control
• RF Range: Up to 30m
• App Compatibility: EMBER App (with GW04 gateway)
• For Use With: UFH10-RF, R_7-RFv2
• Power Supply: 230Vac ±10%
• Certifications: CE, UKCA
• Maximum RF Range: 30m

Temperature & Control

• Temperature Range: 5°C to 35°C
• Switching Differential: Adjustable 0°C to 1.0°C

Physical Specifications

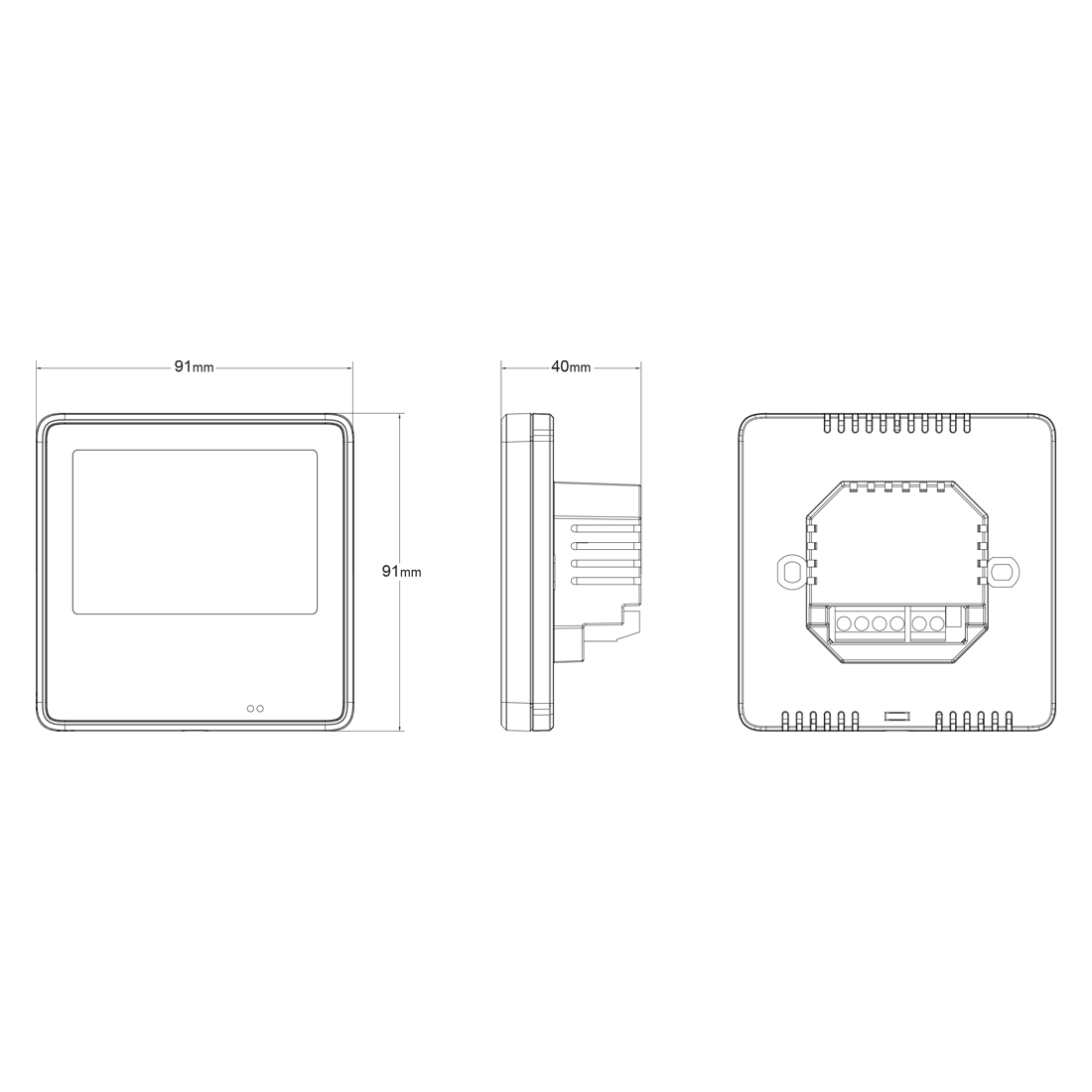

• Dimensions: 91 x 91 x 40mm
