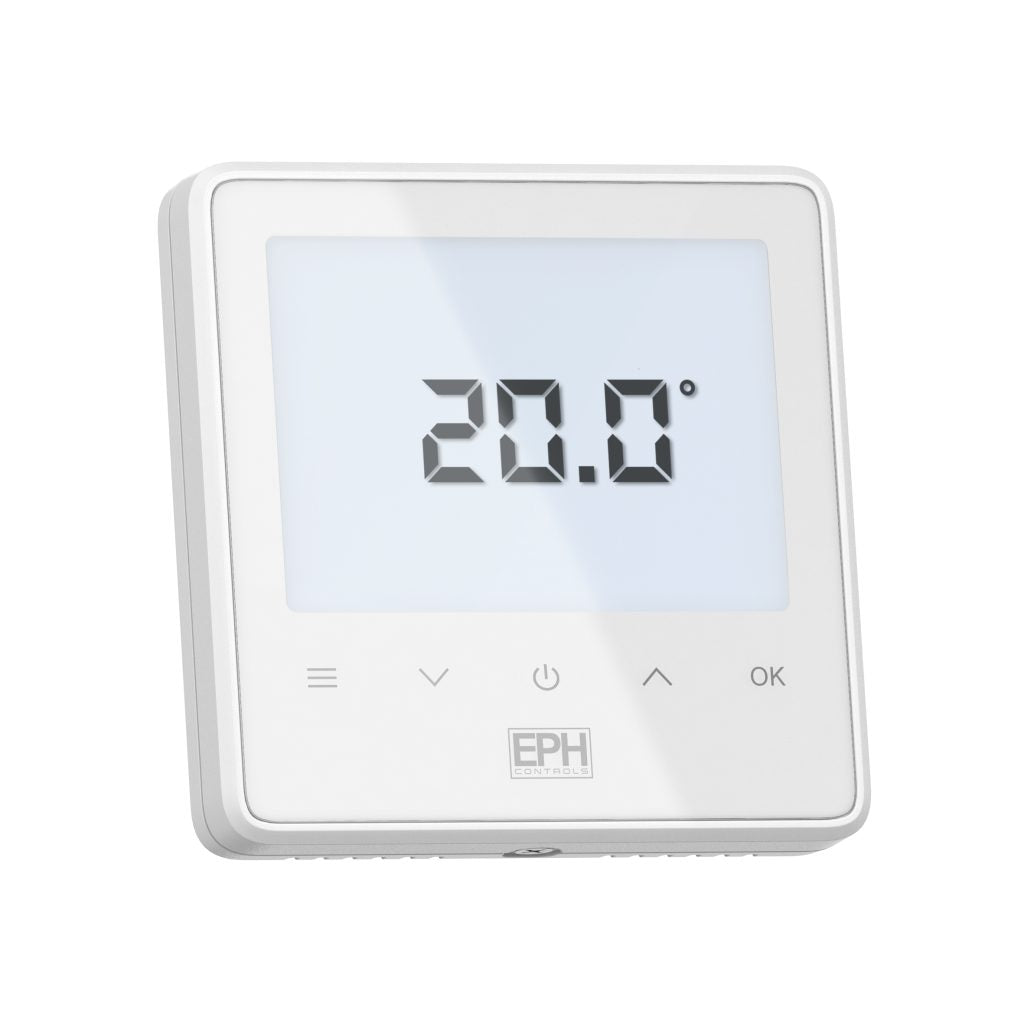

EPH - RF Touch Thermostat, Recessed, Mains Operated, White

Product Part Number

EPH-RDT-RF-TW

Product Overview

The RDT-RF-TW Mains Powered Recessed RF Touch Thermostat combines modern touch control with reliable RF communication, delivering a sleek and intuitive heating control solution. Engineered for simplicity, the thermostat integrates seamlessly with EPH Programmer Systems (PS) and Underfloor Systems (US).

Designed for recessed installation, the RDT-RF-TW features a responsive touch interface with a dedicated On/Off button and advanced control options including Delay Start and TPI (Time Proportional & Integral) for improved comfort and energy efficiency.

Operating via RF communication with a range of up to 30 metres, the thermostat is compatible with the UFH10-RF wiring centre and R_7-RFv2 receiver. When paired with the GW04 gateway, users can control their heating remotely using the EMBER App, enabling convenient smartphone management.

Technical Specification

• Product Name: RDT-RF-TW – Mains Powered Recessed RF Touch Thermostat
• Mounting Type: Recessed
• Application: Compatible with EPH Programmer Systems (PS) and Underfloor Systems (US)
• Control Features:
  • Touch interface
  • On / Off button
  • Delay Start
  • TPI control
• RF Range: Up to 30m
• App Compatibility: EMBER App (with GW04 gateway)
• For Use With: UFH10-RF, R_7-RFv2
• Power Supply: 230Vac ±10%
• Certifications: CE, UKCA
• Maximum Range: 30m

Temperature & Control

• Temperature Range: 5°C to 35°C
• Switching Differential: Adjustable 0°C to 1.0°C

Physical Specifications

• Dimensions: 91 x 91 x 40mm
