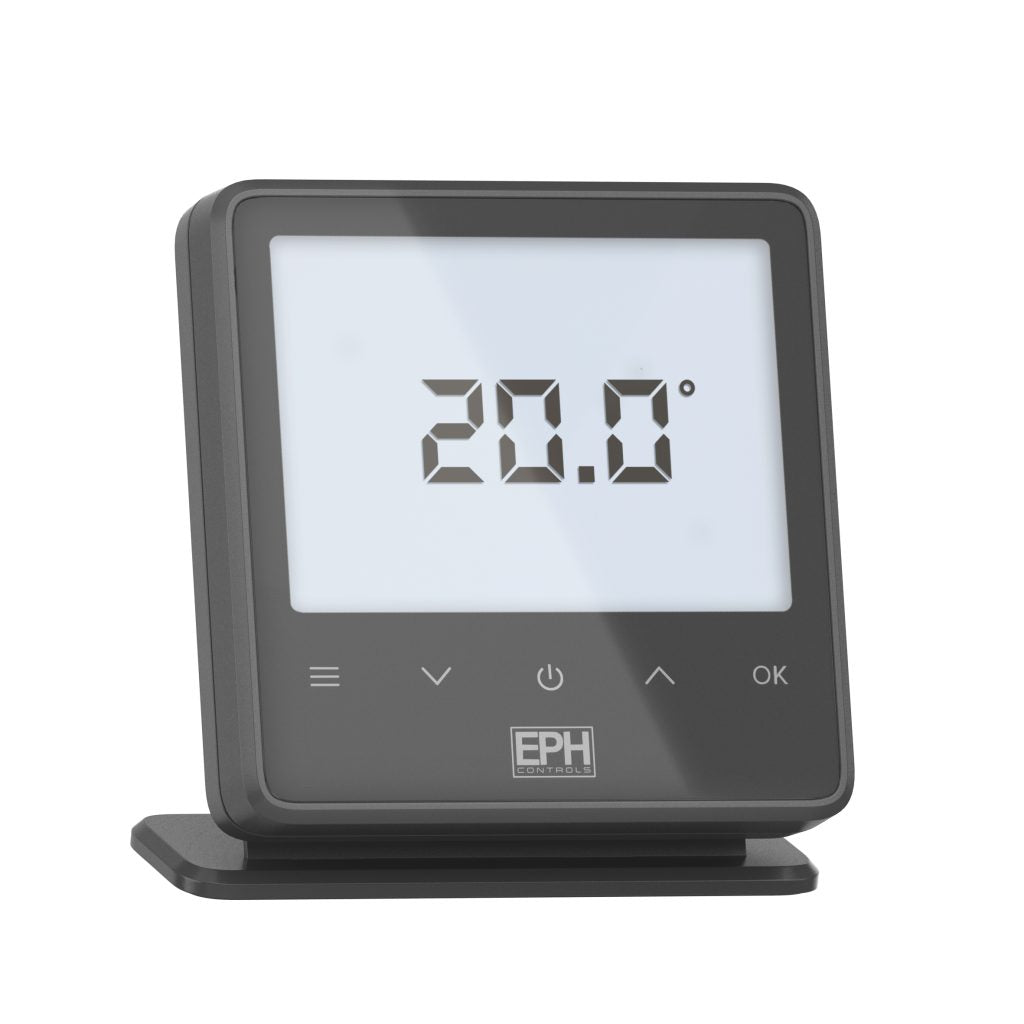

EPH - RF Touch Thermostat, Surface wall or stand mounted, Battery Powered, Black

Product Part Number

EPH-RFRB-TB

Product Overview

The RFRB-TB Battery Powered RF Touch Thermostat offers modern touch control combined with reliable wireless communication, delivering a flexible and user-friendly heating control solution. Designed for seamless integration with EPH Programmer Systems (PS) and Underfloor Systems (US), it is suitable for both radiator and underfloor heating applications.

With flexible installation options, the RFRB-TB can be surface mounted or used as a free-standing thermostat, eliminating the need for hardwired connections. Operating via RF communication with a range of up to 30 metres, it pairs with the UFH10-RF wiring centre or R_7-RFv2 receiver to provide dependable heating control.

The intuitive touch interface includes a dedicated On/Off button, along with advanced features such as Delay Start and TPI (Time Proportional & Integral) control to optimise comfort and energy efficiency.

When combined with the GW04 gateway, the thermostat can be controlled remotely through the EMBER App, enabling convenient smartphone management.

Technical Specification

• Product Name: RFRB-TB – Battery Powered RF Touch Thermostat
• Mounting Type: Surface mounted or free standing
• Application: Compatible with EPH Programmer Systems (PS) and Underfloor Systems (US)
• Communication: RF wireless
• RF Range: Up to 30m
• Control Features:
  • Touch interface
  • On / Off button
  • Delay Start
  • TPI control
• App Compatibility: EMBER App (with GW04 gateway)
• For Use With: UFH10-RF, R_7-RFv2
• Power Supply: 4 x AAA Batteries
• Certifications: CE, UKCA

Temperature & Control

• Temperature Range: 5°C to 35°C
• Switching Differential: Adjustable 0°C to 1.0°C

Physical Specifications

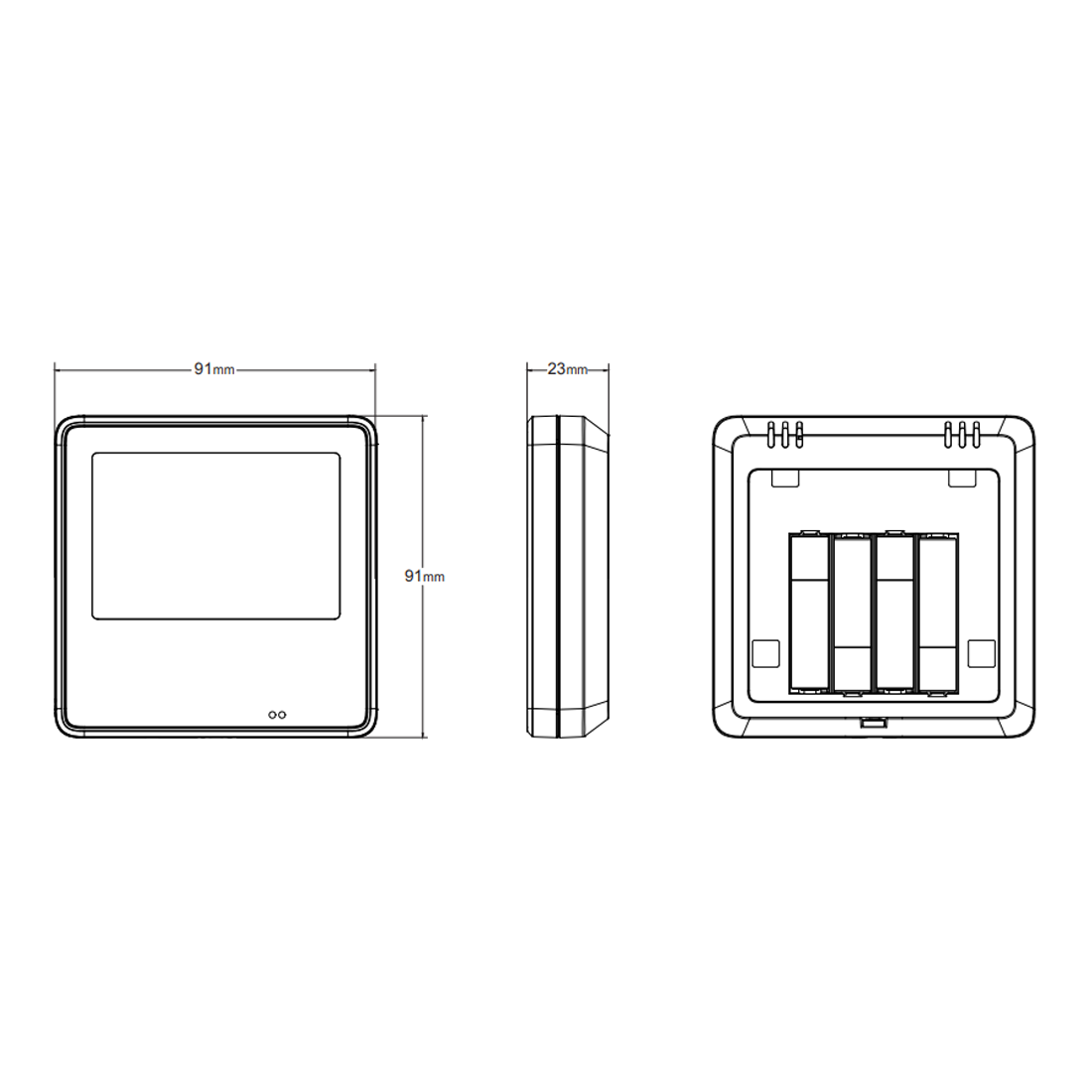

• Dimensions: 91 x 91 x 23mm
