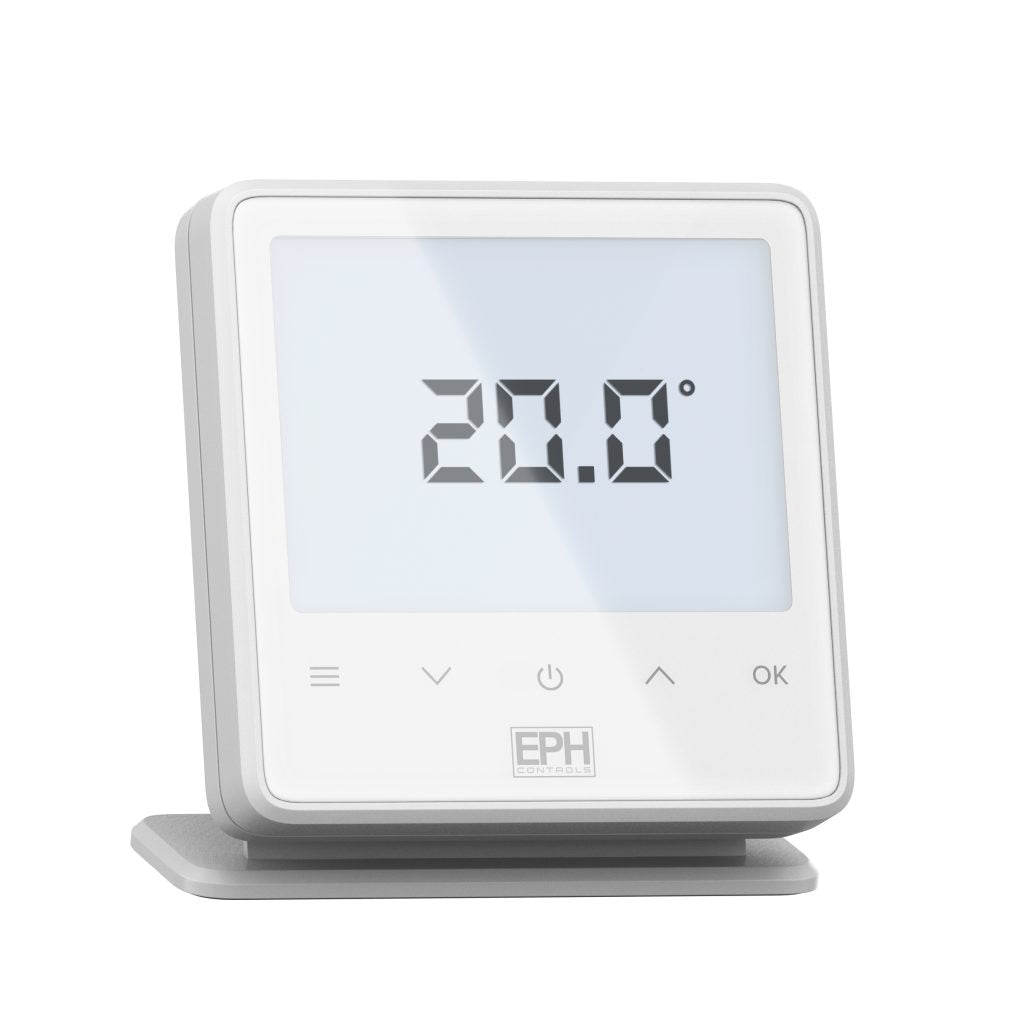

EPH - RF Touch Thermostat, Surface wall or stand mounted, Battery Powered, White

Product Part Number

EPH-RFRB-TW

Product Overview

The RFRB-TW Battery Powered RF Touch Thermostat combines sleek touch control with wireless flexibility, delivering a modern and easy-to-use heating control solution. Engineered for simplicity, it integrates seamlessly with EPH Programmer Systems (PS) and Underfloor Systems (US), making it ideal for both radiator and underfloor heating applications.

Designed for flexible installation, the RFRB-TW can be surface mounted or used as a free-standing unit, offering convenient placement options without the need for hardwiring. Operating on RF communication with a range of up to 30 metres, it pairs with the UFH10-RF wiring centre or R_7-RFv2 receiver for reliable system control.

The thermostat features an intuitive touch interface, incorporating an On/Off button, Delay Start, and TPI (Time Proportional & Integral) control for improved comfort and energy efficiency.

When combined with the GW04 gateway, the RFRB-TW can be controlled remotely via the EMBER App, providing smartphone access for enhanced convenience.

Technical Specification

• Product Name: RFRB-TW – Battery Powered RF Touch Thermostat
• Mounting Type: Surface mounted or free standing
• Application: Compatible with EPH Programmer Systems (PS) and Underfloor Systems (US)
• Communication: RF wireless
• RF Range: Up to 30m
• Control Features:
  • Touch interface
  • On / Off button
  • Delay Start
  • TPI control
• App Compatibility: EMBER App (with GW04 gateway)
• For Use With: UFH10-RF, R_7-RFv2
• Power Supply: 4 x AAA Batteries
• Certifications: CE, UKCA

Temperature & Control

• Temperature Range: 5°C to 35°C
• Switching Differential: Adjustable 0°C to 1.0°C

Physical Specifications

• Dimensions: 91 x 91 x 23mm
