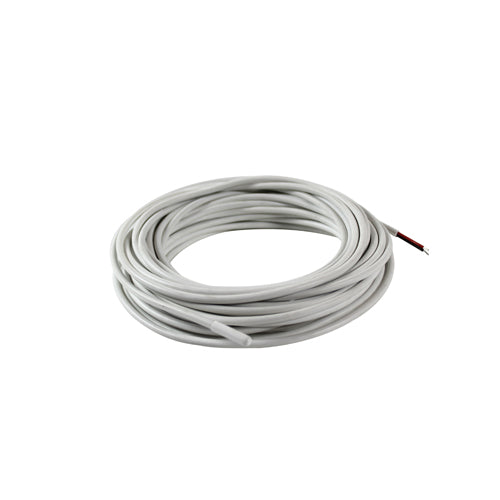

Whisper TP-200 SST Bullet Sensor NTC 10k Ohm cable 3m
Whisper TP-200 SST Bullet Sensor NTC 10k Ohm cable 3m
SKU : CON0183
Overview
The TP-200 is a versatile bullet-style temperature sensor designed for use with Whisper thermostats. It can function either as a remote room sensor, improving temperature control, or as a floor sensor to prevent underfloor heating systems from overheating.Regular price
£118.21
Excl. Vat :
£98.51
Sale price
£79.20
Regular price
Excl. Vat :
£66.00
Unit price
per
In Stock
Couldn't load pickup availability
For warranty information, please refer to the manufacturer’s warranty policy or contact them directly.
Description
Product Part Number
CON0183
Product Overview
The TP-200 is a versatile bullet-style temperature sensor designed for use with Whisper thermostats. It can function either as a remote room sensor, improving temperature control, or as a floor sensor to prevent underfloor heating systems from overheating.
Key features include:
- Slim 5 mm probe, compatible with standard drill bits.
- Stainless steel 304 probe, corrosion-resistant and suitable for wet-room applications.
- Flexible cable lengths ranging from 3 m to 20 m to suit a variety of installations.
- Common NTC 10K Ω resistance for simplified inventory management.
- High accuracy of ±1%, ensuring reliable temperature monitoring.
- Standard NTC parameters: B25/50 = 3950K.
The TP-200 offers a reliable and precise temperature sensing solution for enhancing heating efficiency, system safety, and comfort.
Technical Specification
| Feature | Specification |
|---|---|
| Item | Remote room or floor sensor |
| Product Code | CON0183 |
| Probe Dimensions | 5 × 20 mm |
| Probe Material | Stainless steel 304 |
| Cable Material | Semi-rigid PVC, 2-core multi-strand |
| Accuracy | ±1% |
| Colour | White |
| Mounting Type | In housing (e.g., RH-300) or embedded in floor |
| Working Temperature | -40 to +120 °C |
| Sensor Type | NTC Thermistor 10K Ω |
| Resistance at 25°C | 10 kΩ |
| Temperature vs Resistance (NTC) | -40°C → 328.8 kΩ, 0°C → 32.2 kΩ, 25°C → 10 kΩ, 50°C → 3.6 kΩ, 100°C → 0.7 kΩ, 120°C → 0.3 kΩ |
| Standard NTC Parameters | B25/50 = 3950K |
