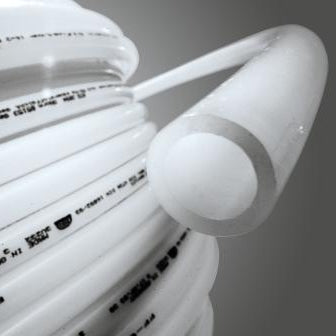

Frankische UFH ML5 Pipe PE-Xb - 16x2 @ 200m - Difustop Multi 5 Layer
Frankische UFH ML5 Pipe PE-Xb - 16x2 @ 200m - Difustop Multi 5 Layer
SKU : 75116760
Overview
This PE-RT (Raised Temperature Polyethylene) pipe is designed for use in underfloor heating systems, offering excellent flexibility, durability, and long-term performance. Manufactured in accordance with DIN 16833, the pipe is suitable for modern low-temperature heating applications and provides reliable operation over its full service life.In Stock
Couldn't load pickup availability
For warranty information, please refer to the manufacturer’s warranty policy or contact them directly.
Description
Product Part Number
75116760
Product Overview
This PE-RT (Raised Temperature Polyethylene) pipe is designed for use in underfloor heating systems, offering excellent flexibility, durability, and long-term performance. Manufactured in accordance with DIN 16833, the pipe is suitable for modern low-temperature heating applications and provides reliable operation over its full service life.
The pipe incorporates an oxygen-impermeable barrier, compliant with DIN 4726, limiting oxygen diffusion to less than 0.1 g/m³ per day. This protects metal components within the heating system—such as manifolds, pumps, and valves—from corrosion.
Designed for application class 4, the pipe is ideal for area heating systems, delivering efficient heat transfer while maintaining system integrity under continuous operating conditions.
Technical Specification
| Feature | Specification |
|---|---|
| Material | PE-RT (Raised Temperature Polyethylene) |
| Manufacturing Standard | DIN 16833 |
| Maximum Operating Temperature | 70 °C |
| Maximum Operating Pressure | 6 bar |
| Application Class | Class 4 |
| Oxygen Barrier | Oxygen-impermeable to DIN 4726 (< 0.1 g/m³·day) |
| Pipe Dimensions | 16 × 2 mm, 17 × 2 mm, 20 × 2 mm |
| Available Coil Lengths | 200 m and 600 m (other lengths available on request) |
| Supply Format | Coiled |
