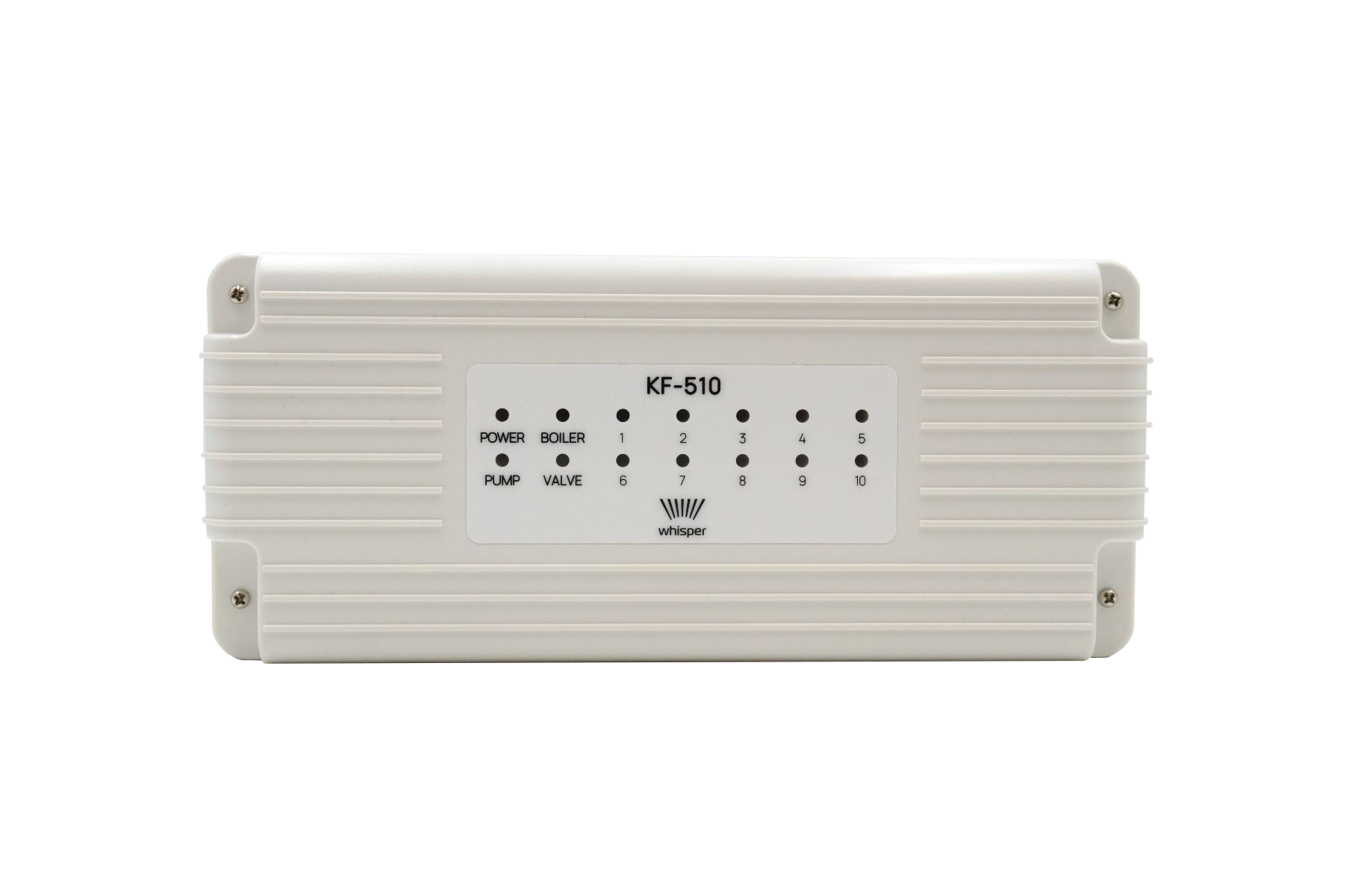

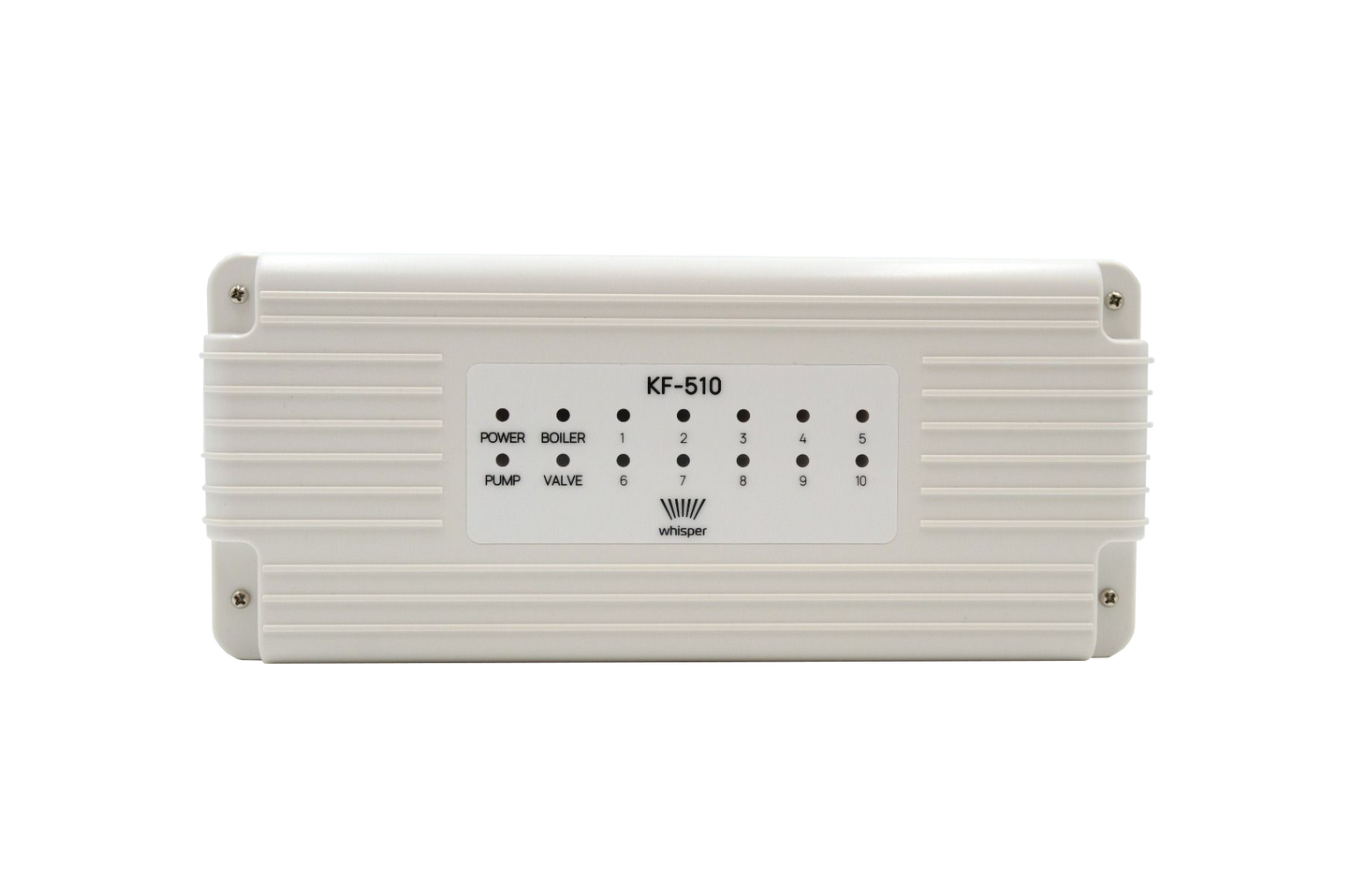

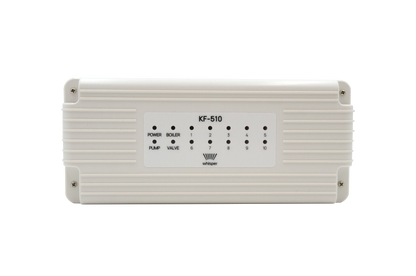

• Whisper KF-510 230V kinetic 10-way wiring centre for underfloor heating system zone control

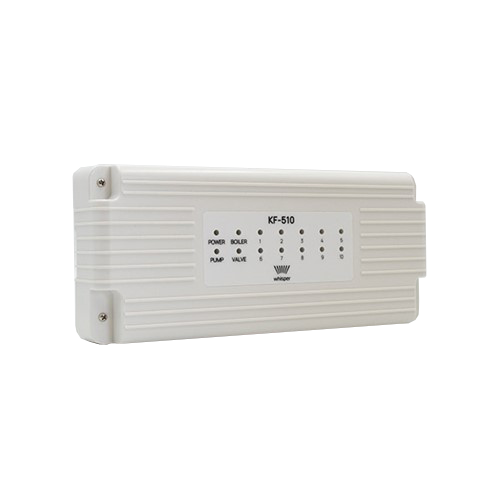

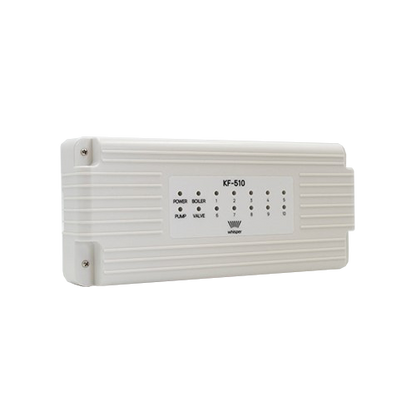

  • 10-zone Whisper KF-510 heating control wiring hub for residential HVAC systems
1 2

Whisper KF-510 230v Kinetic 10 way Wiring Centre

Whisper KF-510 230v Kinetic 10 way Wiring Centre

SKU : CON0179

Overview

The KF-510 Kinetic 10-way Wiring Centre is a high-performance, robust solution for managing multiple heating zones in underfloor heating (UFH) and radiator systems. Designed for reliability and ease of installation, it provides advanced zone control while maintaining flexibility for complex heating setups.
£89.40 GBP Excl. VAT: £74.50 GBP

In Stock
  • For warranty information, please refer to the manufacturer’s warranty policy or contact them directly.
View full details

Description

Product Part Number

CON0179

Product Overview

The KF-510 Kinetic 10-way Wiring Centre is a high-performance, robust solution for managing multiple heating zones in underfloor heating (UFH) and radiator systems. Designed for reliability and ease of installation, it provides advanced zone control while maintaining flexibility for complex heating setups.

Key features include:

  • Ten standard zones for precise multi-zone heating management.
  • Volt-free boiler interlock for safe and flexible integration with a wide range of boilers.
  • Adjustable pump delay to optimize system efficiency and reduce wear on circulation pumps.
  • Integrated connections for two independent valves, typically used for hot water cylinders and first-floor radiator circuits, simplifying installation and wiring.
  • Zone 10 dedicated dip switch allows exclusion from the secondary circulation pump, ideal for radiator circuits that do not require the pump.
  • Top thermostat and bottom actuator cabling entries, offering generous space for simpler and less crowded installations.
  • LED circuit indicators for POWER, BOILER, PUMP, and VALVE provide clear visual feedback, even when the cover is closed, assisting with troubleshooting.

The KF-510 10-way Wiring Centre is suitable for residential and commercial systems, providing enhanced reliability, performance, and control for multi-zone heating installations.

Technical Specification

Feature Specification
Item 230V Hard-wired Wiring Centre
Product Code WC10-510
Material ABS
Dimensions (H×W×D) 139 × 321 × 44.5 mm
Weight 766 g
Max Switching Output 3 A per channel
Number of Zones 10
Outputs Boiler – Volt-free or 230V; Pump, valves, and actuators – 230V
Supply Voltage 230 V AC, 50/60 Hz
Protection Rating IP20
Colour White
Mounting Type Wall-mounted or DIN rail
Cable Entry Long openings at top and bottom with screw-down cable clamps
Compliance CE, UKCA
Key Features Control UFH and radiator valves, adjustable pump delay, volt-free boiler interlock, LED indicators for power, pump, boiler, and valves

Frequently Asked Questions

  • What does a wiring centre do in an underfloor heating system?

    A wiring centre provides a central connection point for thermostats, manifold actuators, pumps and the heat source, allowing each heating zone to operate when heat is required.

  • How many underfloor heating zones can one wiring centre control?

    This depends on the wiring-centre model. Select a unit with enough zone connections for the number of independently controlled areas in the heating design.

  • Can a wiring centre control both underfloor heating and radiators?

    Some heating-control systems can integrate UFH and radiator zones, but compatibility depends on the wiring centre, thermostats, controls and overall heating-system design.
